Features

RS-F370-8 flexo press, is designed to produce high quality labels and IML labels (optional) in high speed.。

800mm large size servo motor controls the unwind device, which can make the paper run smoothly and the end stop automatically.

Compact machine and extremely short paper paths reduce material waste.

The whole machine adopts servo system, with a total of 32 servo motors, including unwind unit, two traction rollers, 8 printing units, 1 sets of die-cutting units, waste removal unit, and 1 set of crush knife

unit. The full servo driven design makes the tension of the material stable and smooth.

Power：380V,50/60HZ

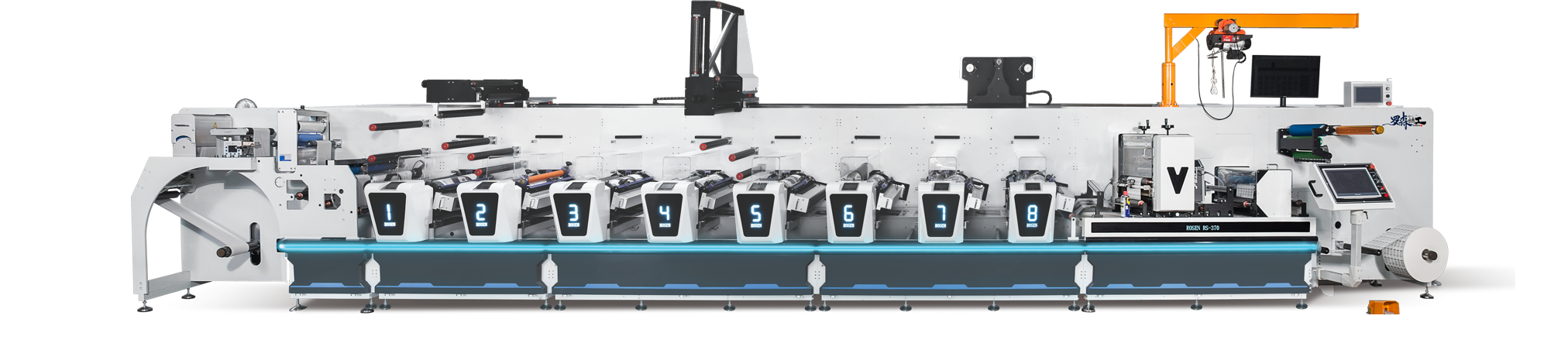

RS-F370-8 flexo printing machine with 8 printing units and 1   rotary die cutting unit

•Adopt Domestically produced servo motor drive system, a total of 32 sets of servo motors

•800mm unwind diameter

•Web guide

•8 printing units with LED UV drier

• impression cylinder with cooler

•RE tension controller

•Geared motor

•Pre-register system

•Traceable color printing

•1000mm rewind dia with servo control

•Turn bar

•1 rotary die cutting units

•Corona treatment and dust removal

•1 sets of plate cylinder and 1 set of anilox roller

•Cold foil device

•1 set of crush knife

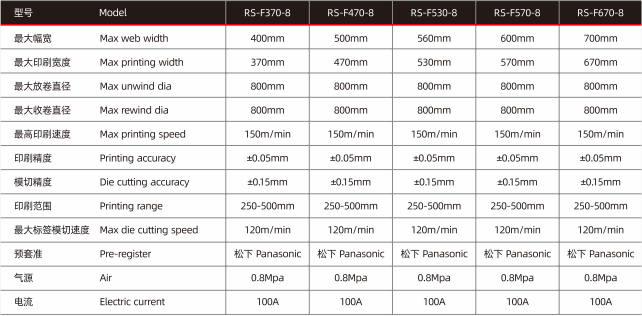

Parameters
